PCH is designed to work best with headphones having an impedance from 16 to 600 ohms.
Free US Shipping On Orders Over $49
Easy 30-Day Returns
Financing Available Through
PCH is designed to work best with headphones having an impedance from 16 to 600 ohms.
To use PCH in a live pedalboard setup:
Connect your guitar into a pedalboard containing an amp+cab simulation pedal or modeling device (such as Strymon Iridium).
Connect the 1/4″outputs of your pedalboard to PCH’s 1/4″ Ins. Connect to the Left In only for mono, or both Ins for stereo.
Connect PCH’s 1/4″ THRU Outs to the input(s) of your guitar/bass amp(s) for stage monitoring. Or, connect either of the THRU Outs to other unbalanced input gear, such as effects, 1/4″ FRFR amp inputs, a recording device, etc.
Connect PCH’s XLR Outs to the XLR input(s) of a mixing console for a house PA system, audio interface, or FRFR amp(s).
Optionally, connect headphones to PCH’s stereo PHONES Out for personal monitoring.
The THRU outputs are 1/4″ unbalanced, Left and Right, TS outputs. Use them to pass your buffered input sources to amplifiers, effects, or other devices.
When connecting a stereo source to both Left and Right Ins, keep the SUM switch disengaged for stereo THRU output. Or, engage SUM to merge the stereo input to a mono signal fed to both THRU Outs.
Press the GROUND switch to the “in” position to lift the ground if you are experiencing hum on the XLR Outs.
Yes. When set to “Line” the PCH is an electronically balanced line isolator. Its dedicated ground lift helps address ground-related hum while keeping your signal clean and transparent.
PCH is an active device and requires a power connection. Use a power supply with the rating: 9VDC, center negative, 500mA minimum.

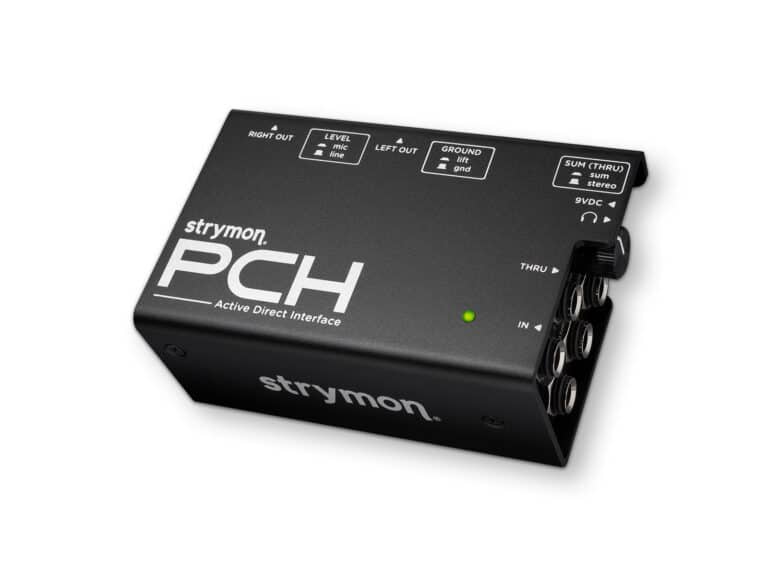

PCH features two buffered, high impedance, unbalanced inputs for instruments or other audio sources.
Connect to the Left In only for a single mono input, or connect to both the Left and Right Ins for stereo.
PCH features two balanced, low impedance outputs. Connect to a mixing console or other low impedance gear for low noise/distortion routing of your source input(s):
Press the LEVEL switch to the “in” position for mic level XLR output. Set to the “out” position for line level XLR output.
The dimensions of PCH are 4.88″ x 2.97″ x 1.94″ (123.93mm x 75.48mm x 49.33mm).
Strymon Non-Transferrable Limited Warranty
Strymon warranties its products and their varying components to be free from defects in material and workmanship for the following periods of time from the original date of purchase when purchased from an Authorized Strymon Dealer:
If the product fails within the warranty period, Strymon will repair or, at our discretion, replace the product at no cost to the original purchaser.
This warranty covers defects in manufacturing discovered while using this product as recommended by Strymon. This warranty does not cover loss or theft, nor does the coverage extend to damage caused by misuse, abuse, unauthorized modification, improper storage, lightning, or natural disasters. Damage caused by any of the above circumstances may result in a non-warranty repair fee.
Products that were purchased from an unauthorized dealer are not covered under warranty. The warranty is non-transferrable and does not cover used or second-hand products.
Products purchased outside of your country (sales channel) have a warranty inside the country it was purchased ONLY and is not valid outside of the country it was purchased. Please contact your dealer for information on warranty and service outside of the USA and Canada.
In the case of malfunction, the purchaser’s sole recourse shall be repair or replacement, as described in the preceding paragraphs. Strymon will not be held liable to any party for damages that result from the failure of this product. Damages excluded include, but are not limited to, the following: lost profits, lost savings, damage to other equipment, and incidental or consequential damages arising from the use, or inability to use this product. In no event will Strymon be liable for more than the amount of the purchase price, not to exceed the current retail price of the product. Strymon disclaims any other warranties, express or implied. By using the product, the user accepts all terms herein.
For North American customers: Contact Strymon through our website at https://www.strymon.net/support for Return Authorization and information. Proof of original ownership may be required in the form of a purchase receipt.
For Customers Outside the USA and Canada: Contact the Strymon dealer from which the product was purchased from in order to arrange warranty repair service.
To locate your nearest authorized Strymon dealer, please use the following link:
You can also contact Strymon directly at (805) 468-8788 or (800) 980-8160 for help finding your nearest authorized Strymon dealer.
Strymon products purchased from an authorized dealer are covered by a manufacturer’s warranty. A purchase receipt from an authorized dealer is required with any request for warranty service.
Please note that any Strymon products that have been purchased from an unauthorized dealer are not eligible for coverage under the manufacturer’s warranty. If you are uncertain, please contact Strymon directly at (805) 468-8788 or (800) 980-8160 before your purchase.
***NOTE: Warranties for Strymon products are non-transferrable. Second-hand items, including sales from websites such as craigslist, Ebay, and Reverb are not covered by a manufacturer’s warranty. ***
Your warranty is valid in the region of purchase. For example, if you buy your product in Japan, any service-related issues will need to be handled in Japan. Products purchased in the United States can only be repaired in the United States.
