Usage

MultiSwitch can be used to control the Looper on the TimeLine. It can also be used to navigate Banks, Presets, and control Tap Tempo on the TimeLine, BigSky, and Mobius.

Connections

Use the supplied TRS 1/4″ cable to connect the MultiSwitch to TimeLine’s EXP input.

trscable_included

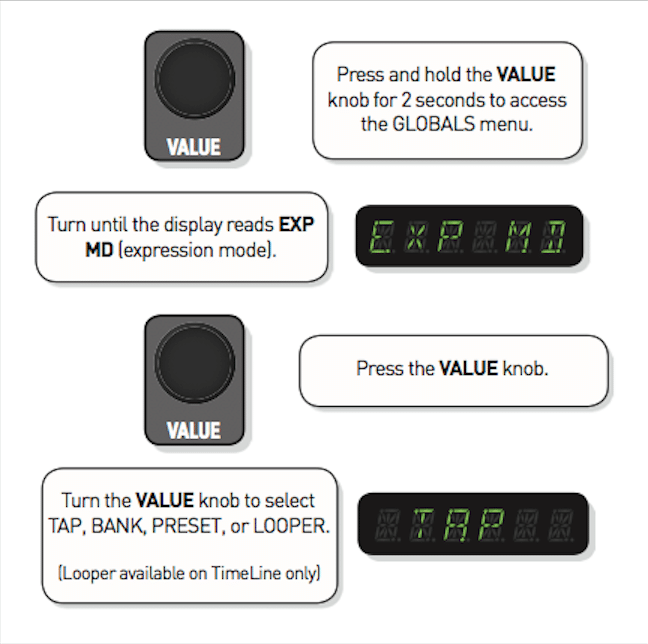

Expression Mode Selection

Once MultiSwitch is connected and your pedal is powered up, press and hold the VALUE encoder for a few seconds to enter the GLOBLS menu, turn the VALUE encoder to select EXP MD, and press the VALUE encoder once more to enter that parameter. Now, turn the VALUE encoder to select LOOPER. Press the TYPE encoder to exit the GLOBLS menu.

EXP-Modes

3-Button Looper

With TimeLine’s Expression mode set to LOOPER, MultiSwitch provides access to the TimeLine Looper’s Record/Overdub, Play, and Stop controls while still having the ability to Bank Up, Bank Down, and Engage/Bypass presets with the TimeLine’s own onboard footswitches.

illustration_3buttonlooper

6-Button Looper

With TimeLine’s switches set to LOOPER control (by pressing and holding the TAP switch for a few seconds), MultiSwitch provides access to REVERSE, HALF SPEED, and UNDO/REDO OVERDUBS controls.

illustration_6buttonlooper

Connections

Use the supplied TRS 1/4″ cable to connect MultiSwitch to TimeLine, BigSky, or Mobius’ EXP input.

trscable_included

Expression Mode Selection

Once MultiSwitch is connected and your pedal is powered up, press and hold the VALUE encoder for a few seconds to enter the GLOBLS menu, turn the VALUE encoder to select EXP MD, and press the VALUE encoder once more to enter that parameter. Now, turn the VALUE encoder to select TAP. Press the TYPE encoder to exit the GLOBLS menu.

EXP Modes

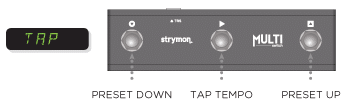

TAP Mode

With the Expression Mode (EXP MD) set to TAP, MultiSwitch provides Tap Tempo control and the ability to scroll up or down the presets.

illustration_tapmode

Connections

Use the supplied TRS 1/4″ cable to connect MultiSwitch to TimeLine, BigSky, or Mobius’ EXP input.

trscable_included

Expression Mode Selection

Once MultiSwitch is connected and your pedal is powered up, press and hold the VALUE encoder for a few seconds to enter the GLOBLS menu, turn the VALUE encoder to select EXP MD, and press the VALUE encoder once more to enter that parameter. Now, turn the VALUE encoder to select PRESET. Press the TYPE encoder to exit the GLOBLS menu.

EXP Modes

PRESET Mode

With the Expression Mode (EXP MD) set to PRESET, MultiSwitch allows you to scroll up or down the presets and to Bypass/Engage the currently selected preset.

illustration_presetmode

In most cases yes. Please visit www.strymon.net/update for information on how to check your firmware version, and how to update your firmware. All TimeLine, Mobius, and BigSky pedals built as of February 17, 2015 ship with firmware that is compatible with MultiSwitch.  If your TimeLine, Mobius, or BigSky was built before this date then it will require a firmware update.

Specs

MultiSwitch is 6.625” wide x 1.875” deep x 2” tall.

Warranty

Strymon Non-Transferrable Limited Warranty

Warranty

Strymon warrants the product to be free from defects in material and workmanship for a period of one (1) year from the original date of purchase. If the product fails within the warranty period, Strymon will repair or, at our discretion, replace the product at no cost to the original purchaser.

Exclusions

This warranty covers defects in manufacturing discovered while using this product as recommended by Strymon. This warranty does not cover loss or theft, nor does the coverage extend to damage caused by misuse, abuse, unauthorized modification, improper storage, lightning, or natural disasters. Damage caused by any of the above circumstances may result in a non-warranty repair fee.

Limits of Liability

In the case of malfunction, the purchaser’s sole recourse shall be repair or replacement, as described in the preceding paragraphs. Strymon will not be held liable to any party for damages that result from the failure of this product. Damages excluded include, but are not limited to, the following: lost profits, lost savings, damage to other equipment, and incidental or consequential damages arising from the use, or inability to use this product. In no event will Strymon be liable for more than the amount of the purchase price, not to exceed the current retail price of the product. Strymon disclaims any other warranties, express or implied. By using the product, the user accepts all terms herein.

How to Obtain Service Under this Warranty

For North American customers: Contact Strymon through our website at http://www.strymon.net/support for Return Authorization and information. Proof of original ownership may be required in the form of a purchase receipt.
For International Customers: Contact the Strymon dealer from which the product was purchased from in order to arrange warranty repair service.

Your warranty is valid in the region of purchase. For example, if you buy your product in Japan, any service-related issues will need to be handled in Japan. Only products purchased in the United States can be repaired in the United States.
