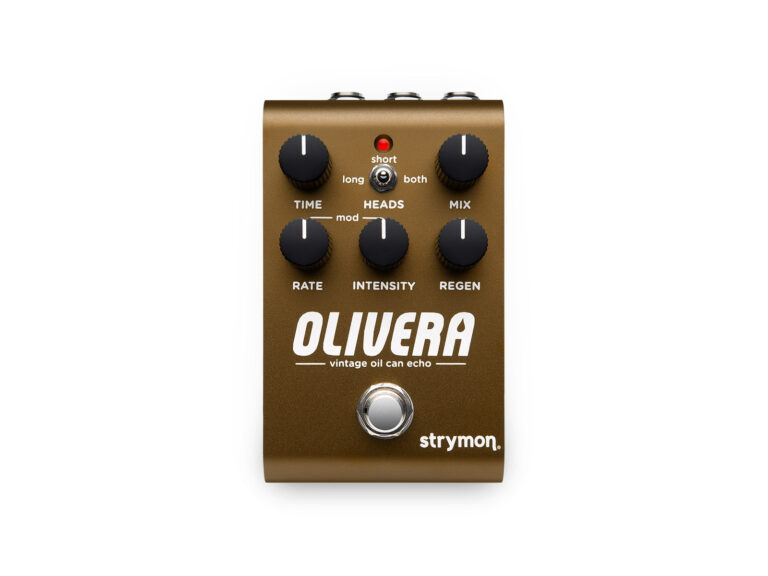

Olivera support

[direct link]

As with a traditional oil can echo, Olivera does not feature tap tempo. Oil can echos are meant to be unpredictable, and tap tempo was omitted by design to keep Olivera feeling and sounding as authentic as possible.

[direct link]

The Dry Signal can be set in one of three different modes.

• Digital Mode uses the converted dry signal and allows the MIX knob to dial out the dry signal when turned past the 3 o’clock position.

• Analog Mode keeps the dry signal in analog.*

• Kill Dry Mode mutes the analog dry path signal, allowing the MIX knob to strictly control the “wet” effect output level. This is often preferable if using Olivera within an amp’s parallel effects loop or a mixer’s aux or effects send.

To change the DRY SIGNAL mode:

• Press and hold the footswitch for at least 2 seconds while powering up Olivera. Once the LED flashes RED, release the footswitch.
• Turn the INTENSITY (DRY SIGNAL) knob to select one of the three Dry Signal options. The LED will change color to indicate the current status as you turn the knob.
  • Digital Mode: GREEN (default, minimum knob position)
  • Analog Mode: RED (50% knob position)
  • Kill Dry Mode: BLUE (maximum knob position)
• Press the footswitch to store the Dry Signal setting and begin using Olivera.

[direct link]

A TRS expression pedal can be used to remotely control any of Olivera’s knobs. By default, Olivera is configured so that an expression pedal controls the MIX knob.

To configure Olivera for expression control, press and hold the footswitch for at least 2 seconds while powering up Olivera. Once the LED flashes RED, release the footswitch. Then, turn the MIX knob counter-clockwise until the LED turns GREEN. Press the footswitch to store the EXP port assignment to EXPRESSION mode.

To change the knobs assigned to the expression pedal:

• Press and hold the footswitch for at least 3 seconds, until the LED blinks GREEN.
• Rock your expression pedal to the HEEL position. The GREEN LED will stop blinking and remain lit.
• Set the knob(s) you would like to control to the desired settings for the HEEL position of the expression pedal.
• Rock the expression pedal to the TOE position. The LED will turn RED.
• Set the knob(s) you would like to control to the desired settings for the TOE position of the expression pedal.
• Press and release the Olivera footswitch to exit and store your expression pedal setup.

Keep in mind that expression pedal assignment is saved per-preset, and not globally.

[direct link]

To begin using Olivera with an external MIDI device, connect the MIDI out jack from a pedal, controller, or computer interface to the EXP/MIDI jack on Olivera. The following devices can be used to send MIDI messages to Olivera:

• Strymon MIDI EXP cable
• Strymon Conduit MIDI Hub or a compatible 5-pin MIDI to 1⁄4” TRS MIDI Interface
• Connect Olivera via USB to a USB host device (such as a computer) that sends MIDI

Configuring Olivera to Use 1/4″ TRS MIDI

Set the EXP/MIDI jack to MIDI Mode

Press and hold the footswitch for at least 2 seconds while powering up Olivera. Once the LED flashes, release the footswitch.

Turn the MIX (EXP/MIDI JACK) knob to select the function of the rear panel’s EXP/MIDI jack. The LED will change color to indicate the current status as you turn the knob.

MIDI Mode: BLUE – Allows for the selection of three presets using a Strymon MultiSwitch Plus. Full MIDI functionality is available by sending MIDI Program Change messages via 1/4” TRS MIDI connection using a Strymon Conduit or MIDI EXP cable. Up to 300 presets are available via MIDI.

Set the MIDI channel

Turn the TIME (MIDI CHANNEL) knob to set the MIDI communication channel. The LED indicates status. Your knob selections are as follows:

• Channel 1: GREEN (default, minimum)
• Channel 2: AMBER (10 o’clock)
• Channel 3: RED (12 o’clock)
• Channel 4-16: BLUE (maximum) – set by next received MIDI Program Change message, requires 1⁄4″ MIDI connection or USB-C connection.

Once the LED turns BLUE, it will blink until the pedal receives a MIDI Program Change message. Once a message is received, the pedal will be set to the MIDI channel that carried the message and exits the Power Up Mode to allow you to begin using Olivera.

Press the footswitch to exit and store your MIDI Channel setting and begin using Olivera.

Set MIDI output mode

Press and hold the footswitch for at least 2 seconds while powering up Olivera. Once the LED flashes, release the footswitch.

Turn the RATE (MIDI OUT) knob to select what kind of MIDI data is sent from Olivera to other MIDI devices. The LED will flash momentarily to indicate your selection.

• OFF: RED (default, minimum) – No MIDI messages are sent out of Olivera.
• THRU: BLUE (11 o’clock) – Incoming MIDI messages are sent to the MIDI Out without any additional MIDI messages generated by Olivera.
• SEND CC, OTHER: GREEN (1 o’clock) – MIDI CC and Sysex messages generated by Olivera are sent to the MIDI Out.
• SEND OTHER: AMBER (maximum) – Sysex messages generated by Olivera are sent to the MIDI Out.

Press the footswitch to store the MIDI Out Mode and exit.

[direct link]

To configure your Olivera and MultiSwitch Plus to work with each other:

• Press and hold the Olivera footswitch while connecting power to the pedal. Hold for at least 2 seconds, until the LED blinks RED.
• Turn the MIX knob all the way clockwise to set the EXP/ MIDI jack to MIDI MODE. The LED should be BLUE.
• Turn the RATE knob to select either of the following MIDI OUT options:
  • Send MIDI CC and Other Data: GREEN
  • Send Other Data: AMBER

• Press the Olivera footswitch to exit and store the MIDI OUTPUT setting, and the EXP/MIDI Jack Mode.
• Connect a TRS cable to Olivera’s EXP/MIDI jack.

There are two separate modes of operation for MultiSwitch Plus and Olivera- Preset Mode, and Custom Mode.

• PRESET Mode:  Press and hold the A footswitch on MultiSwitch Plus while connecting the other end of the TRS cable to any one of the three jacks.
• CUSTOM Mode:  Press and hold the C footswitch on MultiSwitch Plus while connecting the other end of the TRS cable to any one of the three jacks.

To save a preset on Olivera with MultiSwitch Plus:

• Dial in the sound that you would like to save as your preset on Olivera.
• Press and hold the Olivera footswitch for at least 3 seconds, until the LED blinks BLUE.
• Press the A, B, or C MultiSwitch Plus footswitch to save the current state of the pedal to the desired location.

To select a preset on Olivera with MultiSwitch Plus:

• Step on a switch that is not illuminated to recall the corresponding preset.
• Step on an illuminated switch to bypass Olivera.

[direct link]

[direct link]

You can adjust the brightness of Olivera’s LED to optimize visibility in any environment or lighting conditions.

1. Press and hold the FOOTSWITCH for at least 2 seconds while powering up Olivera. Once the LED flashes RED, release the footswitch.

2. Press and hold the FOOTSWITCH again and turn the REGEN (LED BRIGHTNESS) knob to adjust the brightness of the LED from low to high (the default). Release the FOOTSWITCH when your adjustment is complete.

3. Press and release the FOOTSWITCH to store the LED Brightness setting and begin using Olivera.

[direct link]

Olivera includes an optional TONE control, which provides tone adjustment for the echo repeats. The TONE can be accessed in regular operation of the pedal (there is no need to power cycle).

Press and hold the ON footswitch, and within one second turn the REGEN (TONE) knob while holding the footswitch to smoothly adjust the echo tone, from dark at minimum to bright at maximum.

Release the ON footswitch once you’ve made your adjustment to exit and store your Tone setting.

*By default, the TONE is set to 50% (flat).

*The TONE setting is saved per Favorite setting or MIDI preset.

*If the footswitch is held for 2.5 seconds without turning the REGEN knob, the pedal will enter SAVE/EXPRESSION mode.
