RJM switchers, when working with multiple MIDI devices, changing channels on the PBC sends program changes to all of your devices in order, so the first PC that is sent from your switcher will be the first MIDI channel built in to your switcher. Our pedals, when configuring to MIDI channels 4-16, will sync themselves to the channel of the first PC they see. Below are the necessary steps to properly set MIDI channels 4-16 with your RJM switcher:
– Hold 1 and 3 on the switcher to get into setup
– Select Edit Presets
– Select any preset
– Move to the Strymon pedal entry
– Set your Strymon pedal into MIDI CHANNEL MODE
– On the switcher, press Val – or Val +
– The Strymon pedal will flash to confirm that it has been sent a MIDI PC and is now configured
– Press Val – or Val + to correct the PC number you just changed
(because you just edited your preset)
– Press Exit repeatedly to get out of setup

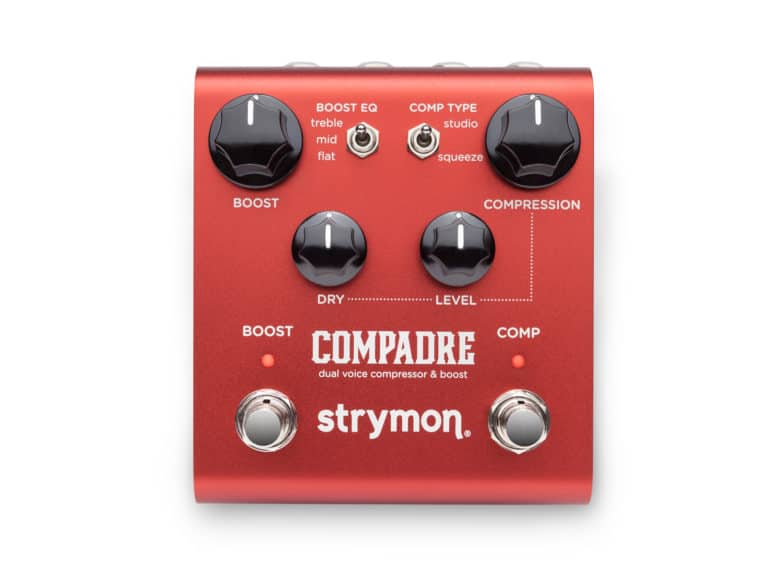

Yes, the BOOST on Compadre will operate completely independently of the COMP. This allows you to engage the BOOST side if the COMP side is bypassed.
Also, the bypass state of each side is saved per preset if you use Compadre with an external MiniSwitch to recall a favorite preset, a MultiSwitc Plus to recall 3 presets, or when using MIDI to recall up to 300 presets.
The amount of total output boost from Compadre varies by the settings dialed in with the controls.
With the BOOST side, when set to CLEAN with the BOOST EQ set to flat, you get +14dB of clean boost when maxed.
With the COMP side, you can get an additional +6dB with the LEVEL maxed out if the COMPRESSION is turned all the way down for no compression. Turning up COMPRESSION will increase the output level with squeeze providing more output than studio mode when maxed.
The DRY knob on Compadre is used to blend in uncompressed (dry) signal from the input along with the compressed signal when the COMP is engaged. This allows you to preserve the attack dynamics of your playing while still enjoying the sustain provided by the compressor. The level of the compressed signal remains consistent throughout the range of the DRY knob.
To begin using Compadre with an external MIDI device, connect the MIDI out jack from a pedal, controller, or computer interface to the FAV/MIDI jack on Compadre. The following devices can be used to send MIDI messages to Compadre:
Disaster Area Designs – DPC Gen 3 Series, DMC Gen 3 Series, MIDIBox
Empress Effects – MIDIbox2
Configuring Compadre to Use MIDI
Set FAV/MIDI jack to MIDI Mode
Once you have connected Compadre to a MIDI source, you must set the FAV/MIDI jack to MIDI mode.
Press and hold the COMP footswitch while connecting the pedal to power.
When the LEDs stop blinking, release the footswitch and turn the BOOST knob clockwise until the BOOST LED turns BLUE.
Press either footswitch to store the FAV/MIDI jack assignment.
Set MIDI Channel
Next, you will need to select a MIDI channel to communicate with Compadre. Compadre is set to MIDI channel 1 by default.
Press and hold down the BOOST footswitch while connecting the pedal to power.
When the LEDs stop blinking, release the footswitch and turn the BOOST knob to set the MIDI channel. The BOOSTLED will change color as the MIDI Channel is changed:
GREEN – MIDI Channel 1
AMBER – MIDI Channel 2
RED – MIDI Channel 3
BLUE – MIDI Channels 4-16
This setting requires a 1/4″ TRS MIDI connection to set. Once the LED turns BLUE, it will blink until the pedal receives a MIDI Program Change message. Once a MIDI PC message is received, the pedal will be set to the MIDI channel that the message was sent through and the LED will stop blinking.
ex. Send a MIDI Program Change message on MIDI Channel 5 to set Compadre to MIDI Channel 5.
Press the COMP or BOOSTfootswitches to store the MIDI channel assignment and begin using Compadre.
If selecting MIDI Channel 4-16, Compadre will automatically save the setting and boot up once a MIDI Program Change message is received.
Set MIDI Output Mode
The MIDI Output mode must be set to determine what kind of MIDI data is sent out by Compadre. ***NOTE: If you are only sending MIDI data to Compadre or if you are using the Strymon MIDI EXP cable, the MIDI Output mode must be set to OFF.***
Press and hold down the BOOST footswitch while connecting the pedal to power.
When the LEDs stop blinking, release the footswitch and turn the COMPRESSION knob to select what kind of MIDI data is sent from Compadre to other MIDI devices. The COMP LED will show the status:
GREEN – ON – Using Compadre’s knobs and switches generates MIDI messages that are sent out of Compadre.
AMBER – THROUGH – Incoming MIDI messages are sent out of Compadre without any additional MIDI messages generated by Compadre.
RED – OFF (default) – No MIDI messages are sent out of Compadre.
Saving and Recalling Presets on Compadre with MIDI
Saving Presets via MIDI
***NOTE: Saved Favorite or MIDI presets on Compadre will store the settings of all the knobs and toggle switches on the pedal as well as the individual bypass states of the BOOST and COMP sides of the pedal.***
With the FAV/MIDI jack set to MIDI mode, the currently loaded settings can be saved to any of Compadre’s 300 preset locations at any time.
To initiate the SAVE process, press and hold the BOOST footswitch. The BOOST LED will start blinking BLUE.
Send a MIDI Program Change message from your connected MIDI device to Compare. The LED will stop flashing and C0mpadre will save the settings to the preset location that corresponds with the MIDI Program Change message it received.
To save a preset to the currently loaded preset location, simply press the BOOST footswitch once again while the LED is flashing.
To recall presets on Compadre, send the pedal a MIDI Program Change message on the same MIDI channel the pedal is set to that corresponds to the desired preset you would like to recall.
Compadre contains 300 preset locations, numbered sequentially from 0-299. Because MIDI Program Change messages have a maximum number of 128 (0-127) the presets are grouped into three MIDI patch banks:
MIDI BANK 0 = PRESETS 0-127
MIDI BANK 1 = PRESETS 128-255
MIDI BANK 2 = PRESETS 256-299
Compadre always powers up in MIDI Patch Bank 0, so if you plan to stay within the first 127 presets, simply send a standard MIDI Program Change message to load a preset.
If you will be using MIDI Banks 1 and/or 2, it is advisable to send a standard MIDI Bank Change message (MIDI CC# 0 with a value equal to the MIDI Bank#) before each MIDI Program Change.
Selecting bank 0, patch 127 will put Compadre into Manual mode. In this mode, the pedal will be set to the current knob and switch settings. No preset data can be stored at this preset location.
We don’t recommend using daisy chain power supplies. Ground loops are commonly caused when using a daisy chain power cable to power multiple pedals. This creates a ground loop between every pedal in the daisy chain. Ground loops allow stray magnetic fields to introduce hum into your signal path.
If the only type of effect you use is distortion you may not have (or hear) the ill effects. But, if you have modulation and delay pedals the likelihood of ground loops wreaking havoc on your signal is high.
If you don’t plan on using the included power adapter, we recommend an isolated power supply. An isolated supply works by using a transformer (or multiple transformers) to keep every power outlet completely electrically isolated. We offer two fully-isolated, high current DC power supplies, Ojai and Zuma. Click below for more info:
We always work hard to improve the experience our customers have with our products. The release notes below list the new features we’ve added to Compadre and/or issues we’ve resolved. Download the Strymon Update software to update the firmware on your Compadre.
Compadre Firmware REV v1.05 (Released July 2020)
When attempting to save in a currently loaded MIDI preset (MIDI PC#’s 1-126) by re-pressing the BOOST footswitch during the save process, the preset would save to the on-board preset location instead (MIDI PC# 0).
MIDI OUT was always set to ON with all three modes (ON, THROUGH, and OFF).
MIDI messages would only transmit on MIDI Channel 1.
