TimeLine, BigSky, & Mobius Firmware Update Procedure

The Strymon Nixie software makes it possible to update the firmware on your TimeLine, Mobius, or BigSky directly within the application. Below are instructions that illustrate how to update your pedal with the Nixie software.

Latest Firmware

» TimeLine – v1.87 – release notes
» BigSky – v1.49 – release notes
» Mobius – v1.39 – release notes

If your pedal has the latest version shown above, an update is not required.

» How do I check my firmware version?


In order to connect your pedal to the Librarian you must use a robust MIDI to USB interface with developed drivers for your computer’s specific operating system version.  Some MIDI Interfaces that will work with our products are the Roland UM-ONE or Yamaha UX-16.  Make sure to connect the MIDI OUT from your interface to the MIDI IN port of your Strymon pedal and the MIDI IN from the MIDI interface to the MIDI OUT port on your Strymon pedal.


Strymon Nixie Software

Use the Strymon Nixie software to update your TimeLine, BigSky, or Mobius pedal via MIDI.  You can download the application from the following links:

» Strymon Nixie — Mac OS X
» Strymon Nixie — Windows

Updating with Nixie

  • Step 1
  • Step 2
  • Step 3
  • Step 4
  • After you have installed the Strymon Nixie software, connect the pedal to your computer through a MIDI interface.  Launch the program and Nixie will automatically detect any connected pedals and prompt the Firmware Updates Required window if your pedal requires a firmware update to use the software.  Click the Update button to update the firmware of the selected pedal.

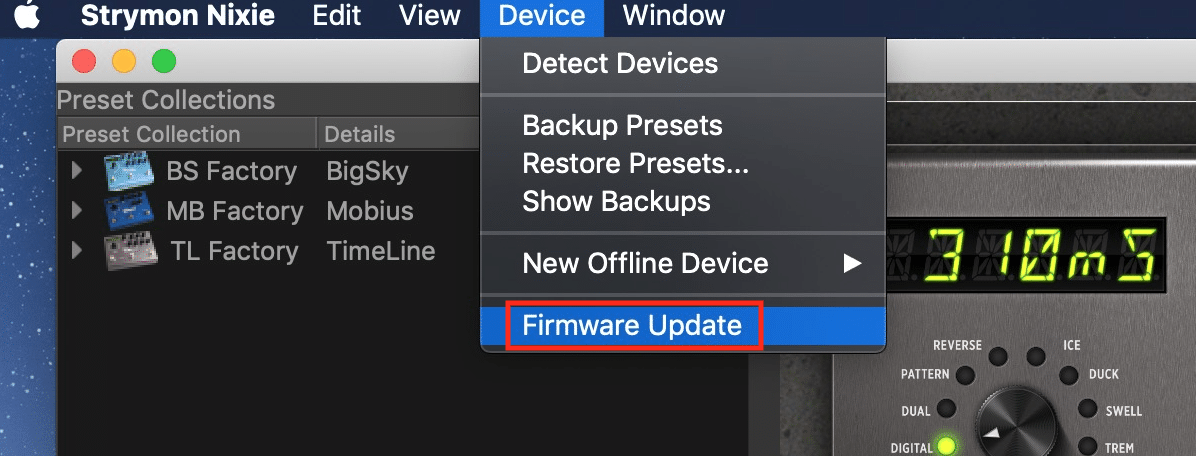

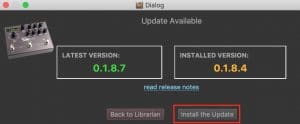

  • If your pedal is already compatible with Nixie, but need to perform an update to the latest firmware, select Firmware Update from the Device menu option, then, select to Install the Update.

  • Once the update is completed, a window will appear to notify you that the update has completed.

  • Once updated, you can verify the firmware version of your pedal at the top of the Device Details window in Nixie.

Need Help?

» Connections and Setup

» Unable to Update with Nixie?

If you have any questions, or need help updating your TimeLine, BigSky, or Mobius, please feel free to contact us and we can help out: support@strymon.net. Thanks!
